You installed a pit truck scale. Eight months later, a hard rain hits, and your scale reads 400 pounds light on every load. The DOT audit is next week. It happens at quarries, grain elevators, and recycling yards every year. The problem is the pit, the drainage, and what nobody planned before the concrete was poured.

At Scale Depot, we solve this all. This guide breaks down both options. With real failure scenarios and limitations, nobody in sales mentions them.

Key Takeaways

• Pit truck scales flood, flooding damages load cells permanently faster than most operators expect.

• Above-ground truck scales remove drainage risk but demand more site space and ramp planning.

• Low-profile truck scales cut ramp height to 6–10 inches, useful for tight sites.

• Portable axle scales solve backup and seasonal needs without permanent installation.

The Real Problem With Pit Truck Scales

A pit truck scale looks clean from above, trucks roll on, steel deck sits flush with the ground. Underneath is a concrete pit collecting rainwater, grain dust, mud, and gravel from every truck that crosses it.

Water pressure buildup around load cell housings causes external corrosion. Once moisture reaches internal strain gauges, accuracy collapses. NIST Handbook 44 requires legal-for-trade accuracy within ±0.1% of applied load; a water-damaged load cell blows past that in one bad season.

Weighbridge Drainage

If the drain sits two inches above the lowest pit point, which happens often, water pools directly under the centre load cells.

• Drain must sit at or below the pit floor's lowest point

• The pit floor needs a minimum 1% slope toward the drain

• Drain lines need quarterly checks, as debris clogs them fast on agricultural and mining sites

How Debris Causes Calibration Drift

Gravel or compacted soil under the steel deck creates mechanical binding; the deck cannot flex, so load cells cannot read correctly. Operators blame the scale.

The real cause is a dirty pit floor. Cleaning a pit truck scale means sending someone into a confined space, requiring a formal safety protocol in most states.

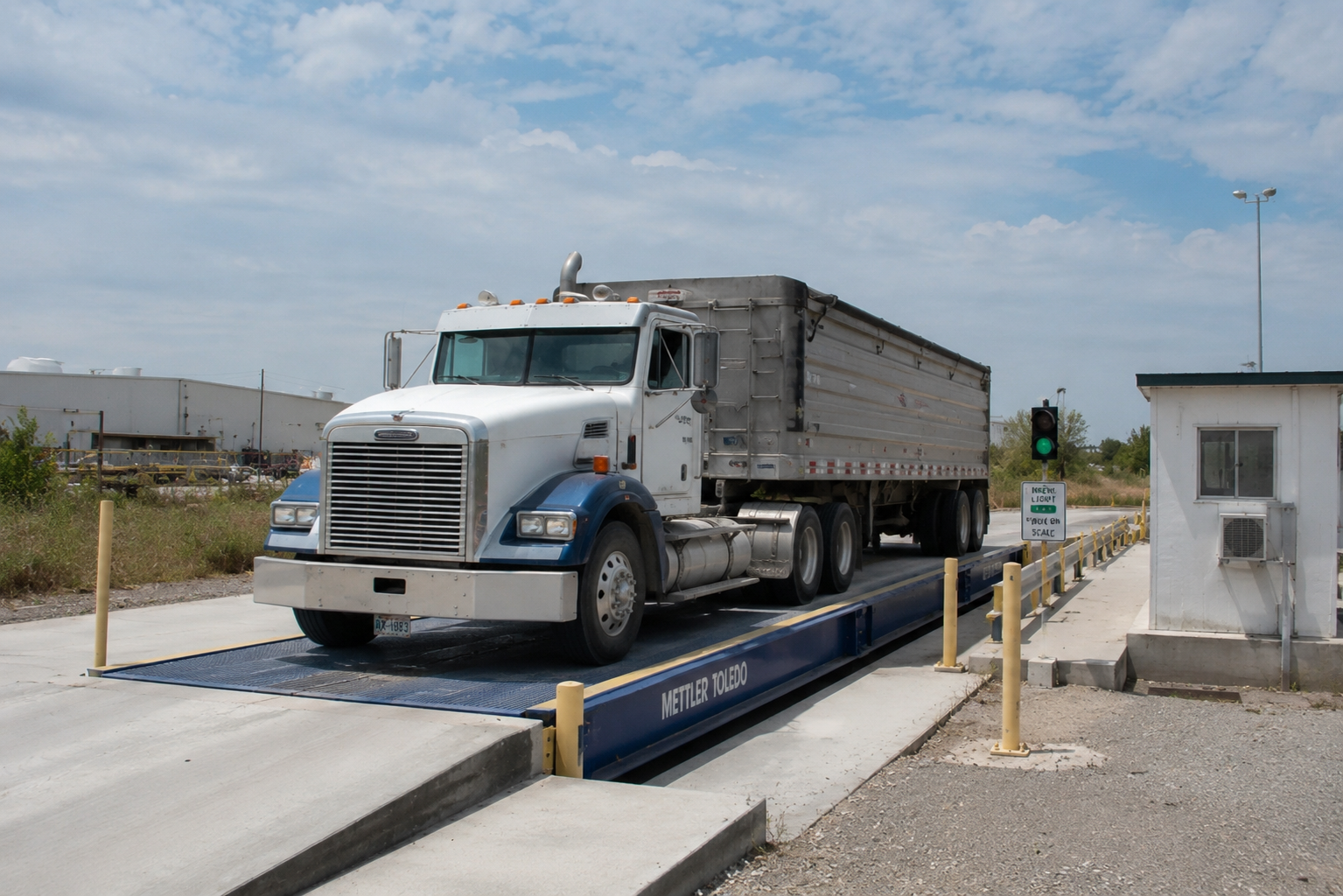

Why Above-Ground Scales Are Gaining Ground

No pit means no flooding. An above-ground truck scale sits on a concrete foundation at or slightly above grade. Water naturally runs off the steel or concrete deck. Technicians inspect load cells and clean underneath without confined space procedures. Cutting downtime costs when maintenance is needed.

Low-Profile Truck Scales

Standard above-ground scales stand 14–20 inches tall, so they require ramps. A low-profile truck scale drops deck height to 6–10 inches, reducing ramp angle and approach distance. For tight clearance requirements or lower vehicles, this matters.

Pit vs. Above-Ground

Truck Scale Installation

Pit installation requires excavation permits, waterproof concrete forming, drain line engineering, and backfill compaction before the scale deck arrives. Rush any step, and you own a structural problem that costs more to fix than build.

Above-ground is simpler but not simple. Clearance requirements must account for your longest vehicle. A 53-foot trailer needs a longer straight approach than most operators calculate. Get the turning radius wrong, and trucks cannot centre on the weighbridge; off-centre loading produces inaccurate weights.

The scale house or loadout building needs a clean sightline to both ends. This gets skipped constantly.

When Portable Scales Are the Right Answer

Seasonal sites, remote job sites, and operations needing backup weighing are strong candidates for portable truck scales or mobile scales for trucks.

Portable axle scales weigh axle-by-axle without any foundation. DOT-accepted for many compliance uses, fast to deploy, and easy to store. They will not replace a high-volume permanent weighbridge, but they solve flexibility problems that permanent scales cannot.

Operations that also move materials internally should look at pallet truck scales and forklift scales. They fill the indoor weighing gap that truck scales are not designed for.

Truck Scale Maintenance

Preventive maintenance separates a scale that lasts a decade from one that fails an audit in year two.

Cleaning

• Pit scales: monthly in high-debris environments, quarterly in light use

• Above-ground scales: blow out under-deck debris monthly; inspect load cell areas every visit

Calibration

Most legal-for-trade operations require annual calibration. Some states require semi-annual. Calibration drift accelerates with moisture, temperature swings, and shock loading.

Load Cell Inspection

Inspect cable jacketing for cracks. Check junction box seals after heavy rain. Rust staining around cell housings signals moisture intrusion. Catch it early and replace a seal. Catch it late and replace the load cell.

Neither Option Is Foolproof

Both options fail when the site is not ready.

A pit scale on a poorly graded site with a blocked drain fails in one wet season. An above-ground scale on a poorly compacted base shifts and drifts just as badly.

• Pit risk: one blocked drain during heavy rain causes permanent load cell damage. That is a replacement event, not a maintenance call.

• Above-ground risk: the underestimated site space means trucks cannot approach straight. Position-based weight variation is a legal liability, not just an accuracy issue.

Talk to an installer who tells you what your site cannot support. If they only discuss what they can sell, find someone else.

Conclusion

This is not about which scale is better. It is about which scale your site can support. Water flow, debris type, vehicle length, and traffic volume all determine the right choice.

Three steps before you buy:

1. Walk your site after heavy rain, and watch where the water moves. That reveals pit viability faster than any spec sheet.

2. Match the scale to your traffic pattern. High-volume operations need a fixed weighbridge. Seasonal needs fit portable axle scales better.

3. Select truck scales for sale filtered by your site constraints, not brand preference.

The right heavy-duty industrial scale weighs accurately three years. V.

Frequently Asked Questions

1. How often should you clean a pit truck scale?

Monthly in high-debris environments like quarries or grain elevators. Quarterly for light-use sites. Always clean after major rain; standing water accelerates load cell corrosion faster than debris does.

2. How does water damage affect truck scale load cell accuracy?

Moisture corrodes internal strain gauge wiring, changing resistance and producing false readings. Damage is usually permanent. This is one of the most common causes of failed legal-for-trade compliance checks.

3. How do I upgrade from a pit scale to a low-profile above-ground scale?

Decommission the pit, backfill, and compact before pouring a new foundation. Site prep typically takes 2–5 weeks, depending on pit size and soil conditions.

4. Can portable axle scales be used for legal-for-trade weighing?

Yes, in many states, with proper certification and a level surface. Verify with your local weights and measures authority before using portable readings for commercial transactions.

5. What causes calibration drift in truck scales not near water?

Temperature extremes, overloading, and mechanical binding from under-deck debris. One rock jammed against the scale frame prevents free deck movement, producing consistent, inaccurate readings.
