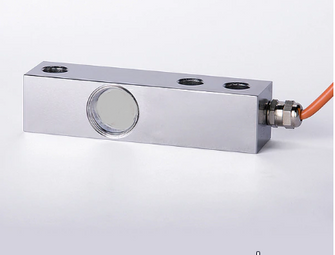

2T Shear Beam Alloy Steel
2T-LC
$149.99
$200.00( / )
2T Load cell Interchangeable Products Artech 30310Celtron SQBCoti Global CG-23HBM A35 Tedea 3411Totalcomp TSB Revere 5123Rice Lake RL30000, RL35023Sensortronics 65023 Specifications:Rated Output (mV/V): 3.00±0.015Nonlinearity: ±0.02%FSHysteresis: ±0.02%FSRepeatability: ±0.01%FSCreep (30 minutes): ±0.02%FSZero Balance: ±1.00%FSTemperature Effect on Zero: ±0.02%FS/10°CTemperature Effect on Output: ±0.02%FS/10°CInput Resistance: 385±5ΩOutput Resistance: 350±3Ω InsulationResistance: ≥5000MΩExcitation Voltage: 10V(DC/AC)Compensated Temperature Range: -10°C ~...
Categories:
2T Load cell
Interchangeable Products Artech 30310
Celtron SQB
Coti Global CG-23
HBM A35 T
edea 3411
Totalcomp TSB Revere 5123
Rice Lake RL30000, RL35023
Sensortronics 65023
Specifications:
Rated Output (mV/V): 3.00±0.015
Nonlinearity: ±0.02%FS
Hysteresis: ±0.02%FS
Repeatability: ±0.01%FS
Creep (30 minutes): ±0.02%FS
Zero Balance: ±1.00%FS
Temperature Effect on Zero: ±0.02%FS/10°C
Temperature Effect on Output: ±0.02%FS/10°C
Input Resistance: 385±5Ω
Output Resistance: 350±3Ω Insulation
Resistance: ≥5000MΩ
Excitation Voltage: 10V(DC/AC)
Compensated Temperature Range: -10°C ~ 50°C
Operating Temperature Range: -20°C ~ 60°C Safe
Overload: 120%FS Cable: 5.4x6 m Cable Color Code: Input: Red (+) Black (-) Output: Green (+) White (-)
NO Warranty
$10 Shipping
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
2T-LC |
| Weight: |
3.0 lb |
