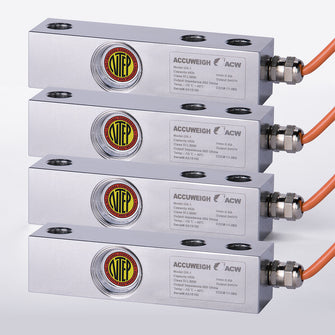

NTEP 1Klb Shear Beam Load Cells (pack of 4) with Spacers and Feet

The 4 NTEP load cells are great for floor scales, hoppers and other legal for trade scales. Legal For Trade load cells are required for Legal For Trade floor scales. Each load cell max weight 1,000lbs. 4 load cells are ideal for a 1000lb/0.2lb or 2500lb/0.5lb scale. Shear beam load cells, one end fixed. Moisture-proof sealed - ideal for hostile environment Self-centering Easy to install & use Specifications: Rated Output (mV/V): 3.00±0.015 Nonlinearity: ±0.02%FS Hysteresis: ±0.02%FS Repeatability: ±0.01%FS Creep (30 minutes): ±0.02%FS Zero Balance: ±1.00%FS Temperature Effect on Zero: ±0.02%FS/10°C Temperature Effect on Output: ±0.02%FS/10°C Input Resistance: 385±5Ω Output Resistance: 350±3Ω Insulation Resistance: ≥5000MΩ Excitation Voltage: 10V(DC/AC) Compensated Temperature Range: -10°C ~ 50°C Operating Temperature Range: -20°C ~ 60°C Safe Overload: 120%FS Cable: 5.4x6 m Cable Color Code: Input: Red (+) Black (-) Output: Green (+) White (-)
